Reliably Advance Devices to Target.
True Tip Visibility.
Precise Delivery.
A true radiopaque soft tip with low density coiling enhances safe and effective crossing of acute coronary bends.
For precise device positioning
For advanced trackability
For smooth device delivery
Advance Farther
Through Tortuosity

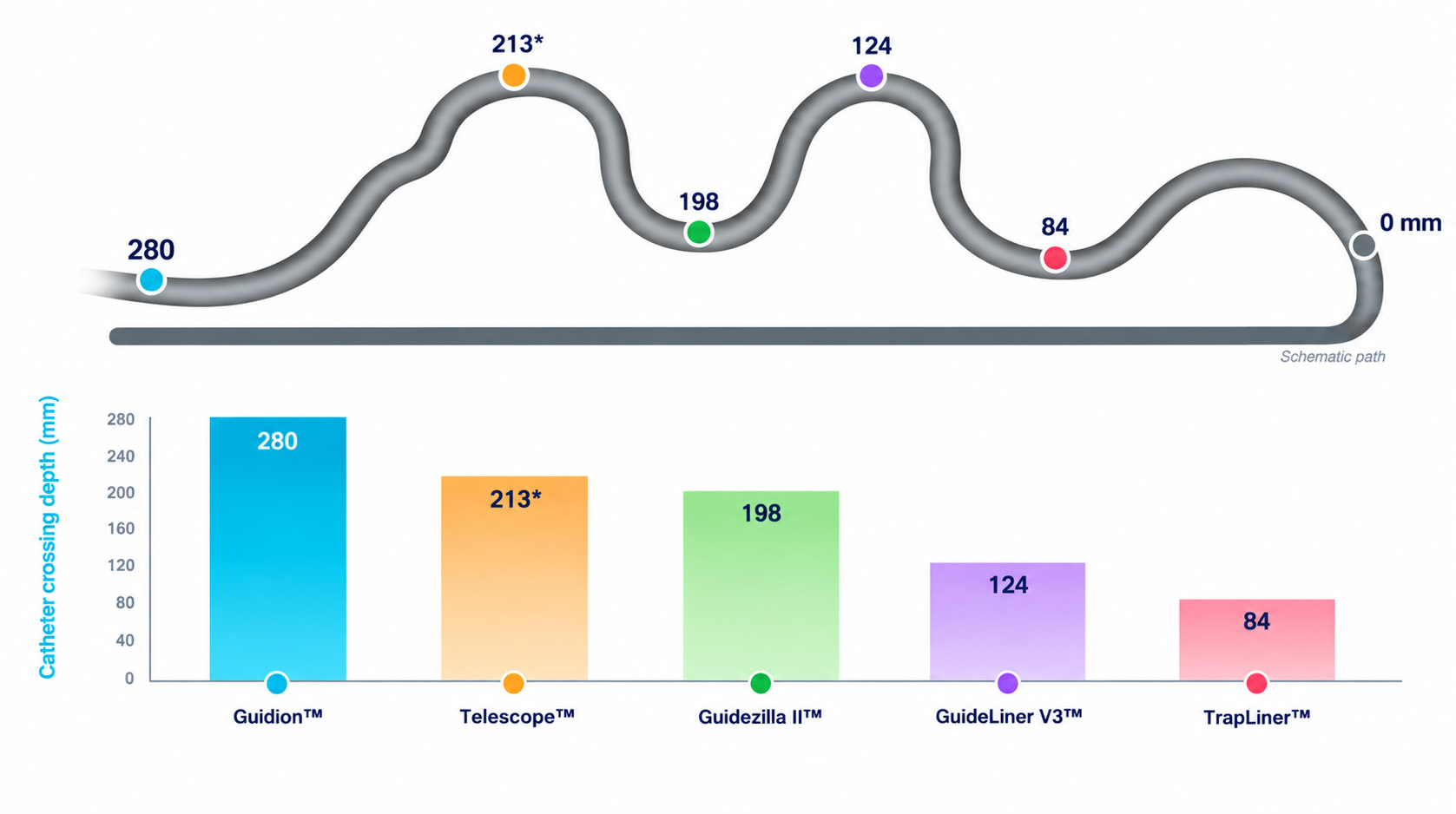

In benchtop testing, Guidion advanced farther compared to competitive guide-extension catheters.1
1. IMDS Data on File
Product Specifications
Distal Flex Zone, for better corner rounding
Usable length
Distal shaft length – trapping-ready, for deep access
radiopaque atraumatic soft tip
SDS entry zone with a proven track record • Hydrophilic Distal Outer Coating • See IFU for complete specifications
| Distal shaft | 25 cm |
|---|---|
| Shaft material | Polyether Block Amide |
| Tip | Flexible, radiopaque, 1.3 mm length |
| Outer Coating | Hydrophilic distal 10 cm |
| Exit Markers | 95 cm and 105 cm |
| Usable Length | 150 cm |
| Guidion Hydro 5F | Guidion Hydro 6F | Guidion Hydro 8F | |
| Model number | G50F25150 | G60F25150 | G80F25150 |
| Required Guide Catheter ID | 5F ID ≥ 0.560″ (1.42 mm) | 6F ID ≥ 0.070″ (1.78 mm) | 8F ID ≥ 0.088″ (2.24 mm) |
| Distal Shaft | 25 cm | 25 cm | 25 cm |
CE Registration under device name Guidion Rapid Exchange Guide Extension. PFAS Free.
Downloads and Related Links
Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions. Caution: Federal Law (U.S.) restricts this device to sale by or on the order of a physician. Guidion™ is a trademark of IMDS.
