Reliable Side
Branch Access -
with Rx Simplicity.
A Structural Breakthrough
in Catheter Performance.
By replacing conventional braided and coiled shaft construction with continuous laser-cut architecture, Skeleton Backbone™ gives ShapeIT a fundamentally different structural foundation engineered to optimize shape retention, steerability and force transmission.
Predictable & Rapid
Side Branch Access in 6F
Precise Wiring Control
- True distal tip visibility
- Improved directional control with a 0.038" wire compatible torquer

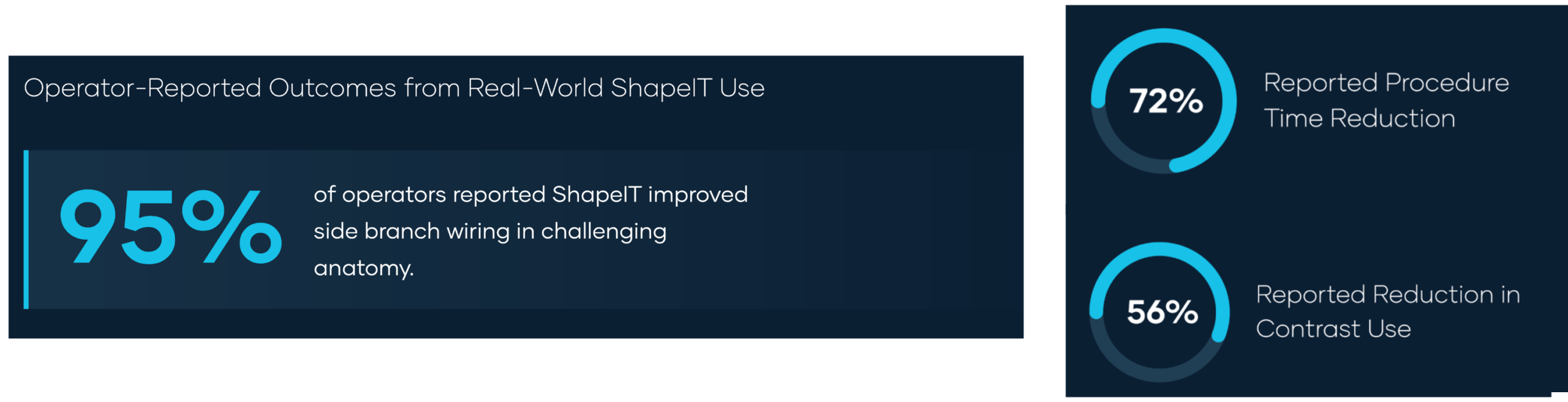

ShapeIT Supports Efficient and
Reliable Side Branch Access1
Post-market surveillance findings
1. ShapeIT Post-Market Surveillance; Data on File at IMDS.
Need More Support?
No Problem.

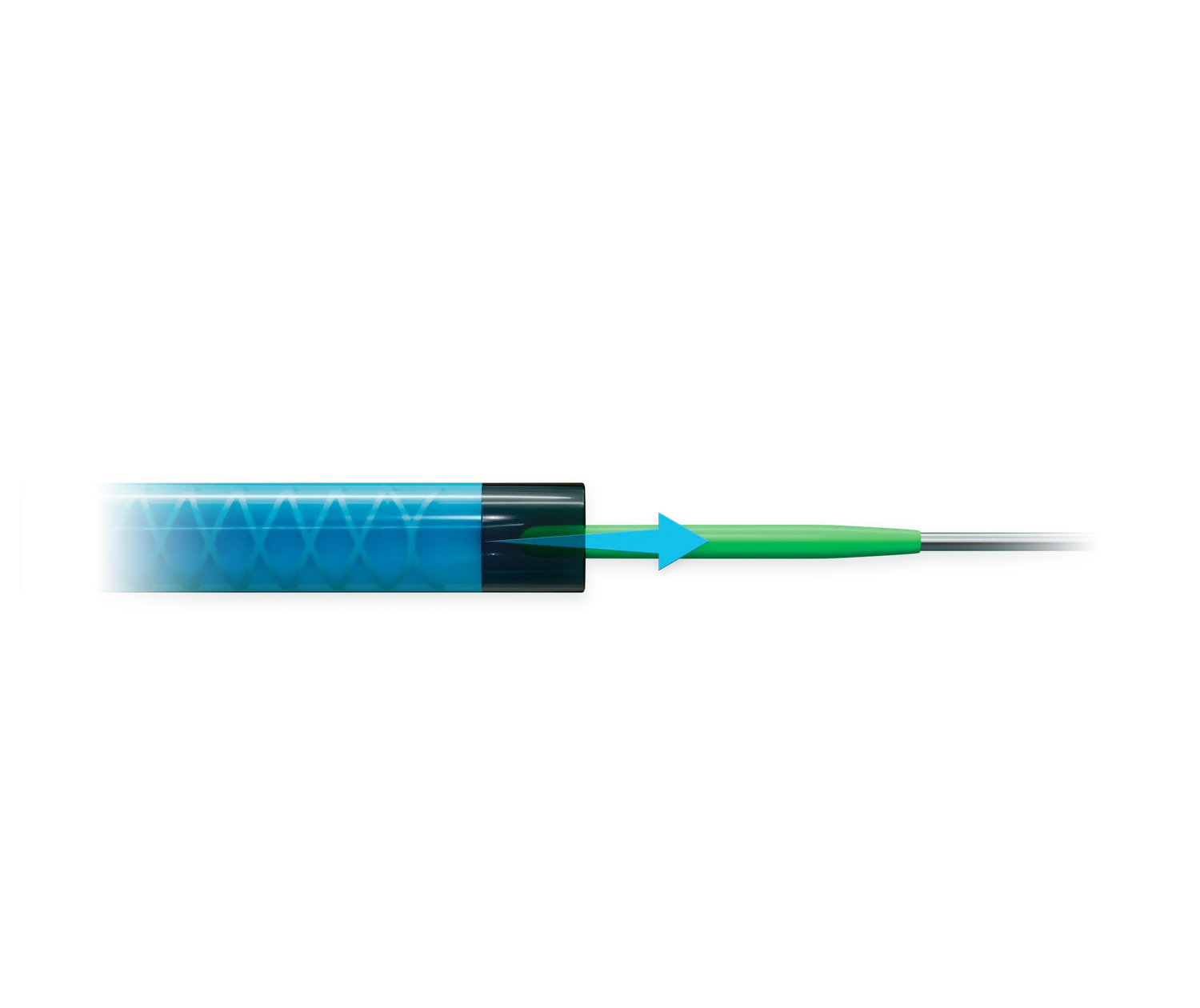

Our novel end stop design enables seamless guide extension loading, while maintaining position.
Product Specifications
Usable length, rapid exchange platform
Guide wire compatibility – your workhorse wire
Fits standard 6F workflows, 5F guide compatible
Novel design loads guide extensions while holding position
Hydrophilic coated • Reinforced shaft • Tip exit markers and exit port markers • Radiopaque shaped tip • See IFU for complete specifications
| Tip Design | Tapered soft tip |
|---|---|
| Shaft design | Skeleton Backbone™ |
| Lesion entry profile | 0.57 mm / 0.022″ / 1.7F |
| Tip exit markers | 95 cm and 105 cm |
| Proximal exit markers | 110 cm and 120 cm |
| Distal shaft coating | Hydrophilic, 12 cm |
| Guide wire compatibility | 0.014″ / 0.36 mm |
| Model number | SI014135 |
|---|---|
| Required guide catheter ID | 5F |
| Distal shaft length | 15 cm |
CE Registration under device name ShapeIT Guide Wire Support Catheter. PFAS Free.
Downloads and Related Links
Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions. Caution: Federal Law (U.S.) restricts this device to sale by or on the order of a physician. ShapeIT™ is a trademark of IMDS.
