Enabling OTW
Workflow in 6F.
Smallest Crossing Profile.
Maximum 6F Performance.

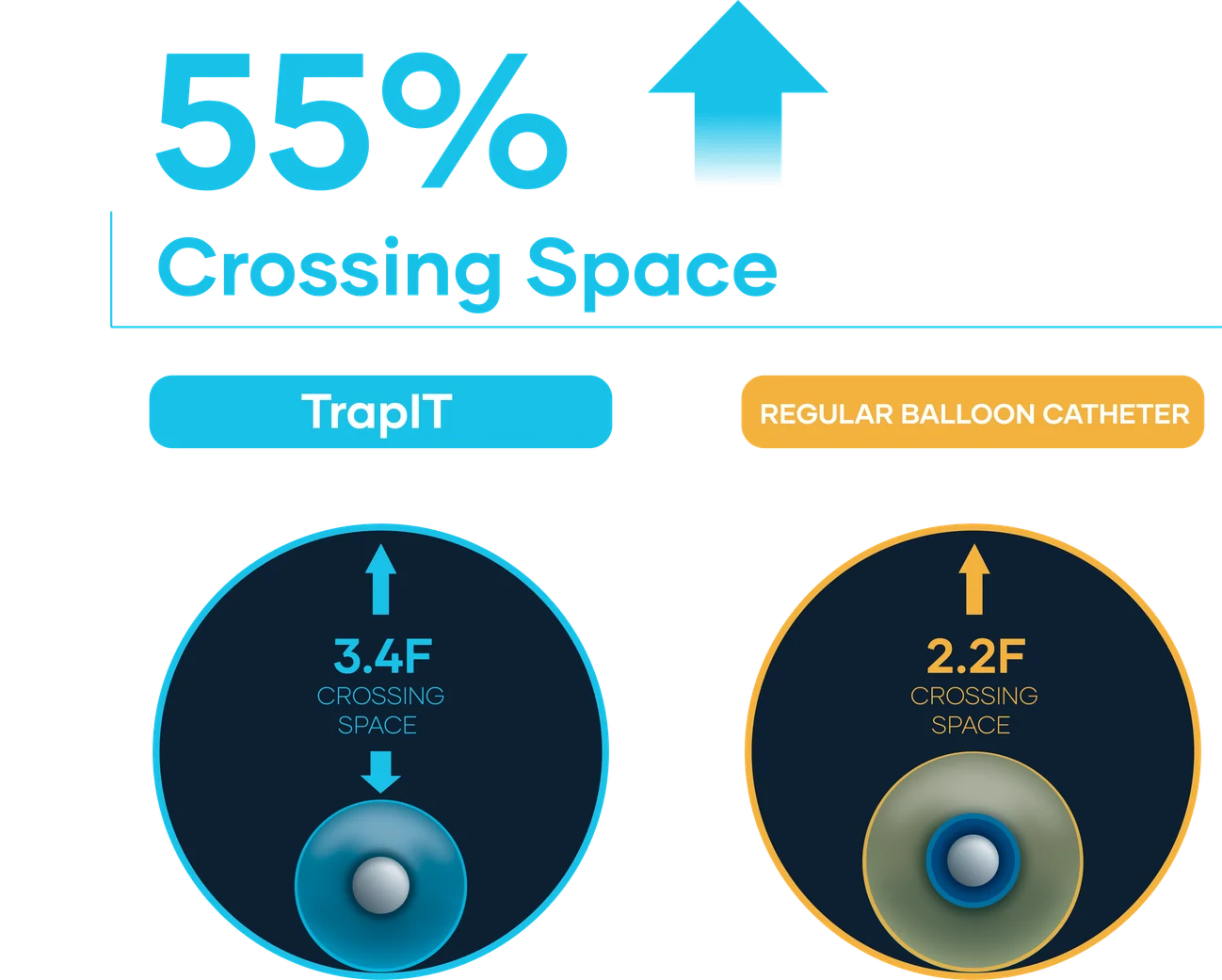

Provides 1.2F more crossing space for high-force, reliable trapping – enabling efficient exchange and full microcatheter compatibility in 6F workflows.1
1. IMDS Data on File
The New Standard
in Trapping Performance
1. IMDS Data on File
* Please refer to TrapIT Trapping Balloon Catheter IFU ITM 160308
insertion, for controlled, safer trapping
- True distal radiopaque tipensures precise visibility
- Continuous stainless-steel coreenables superior crossability
- Patented Auto-Stopprevents distal insertion, for controlled, safer trapping

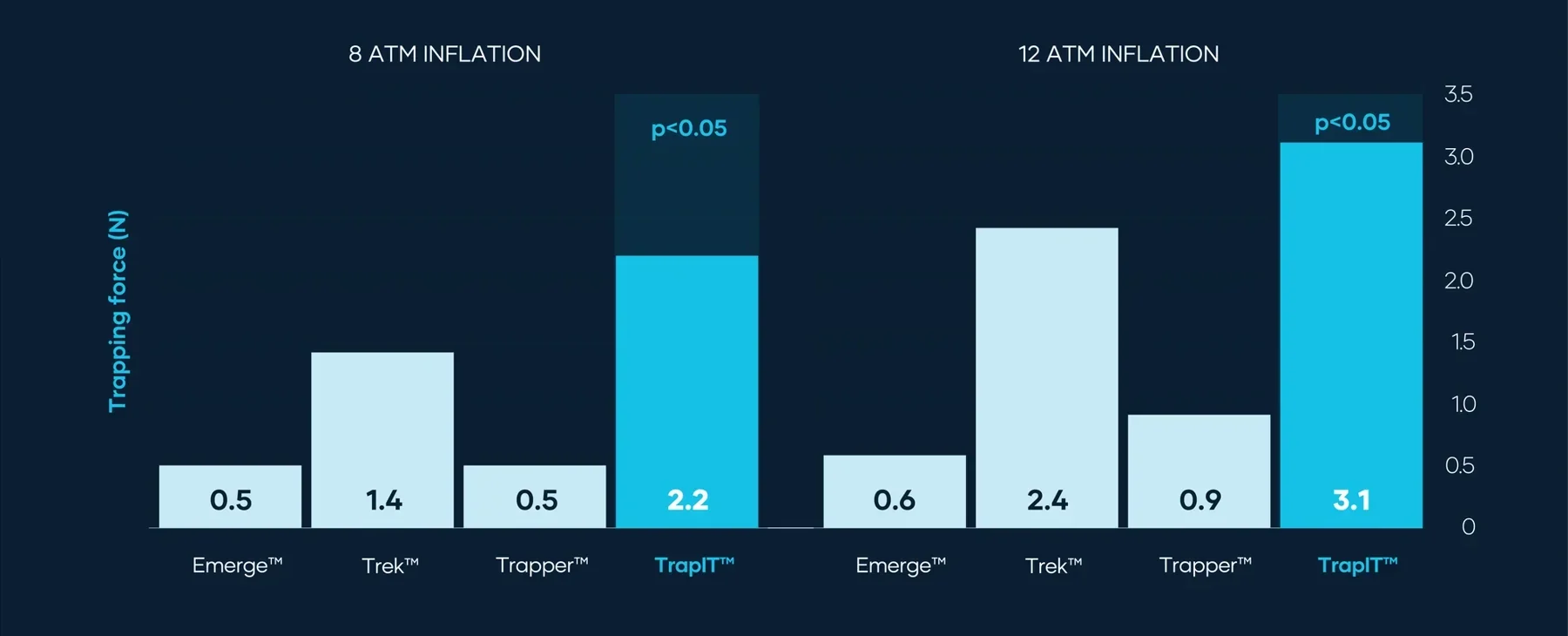

The Most Reliable
Guidewire Trapping
Highest Trapping Force vs Leading Balloons1
1. IMDS Data on File

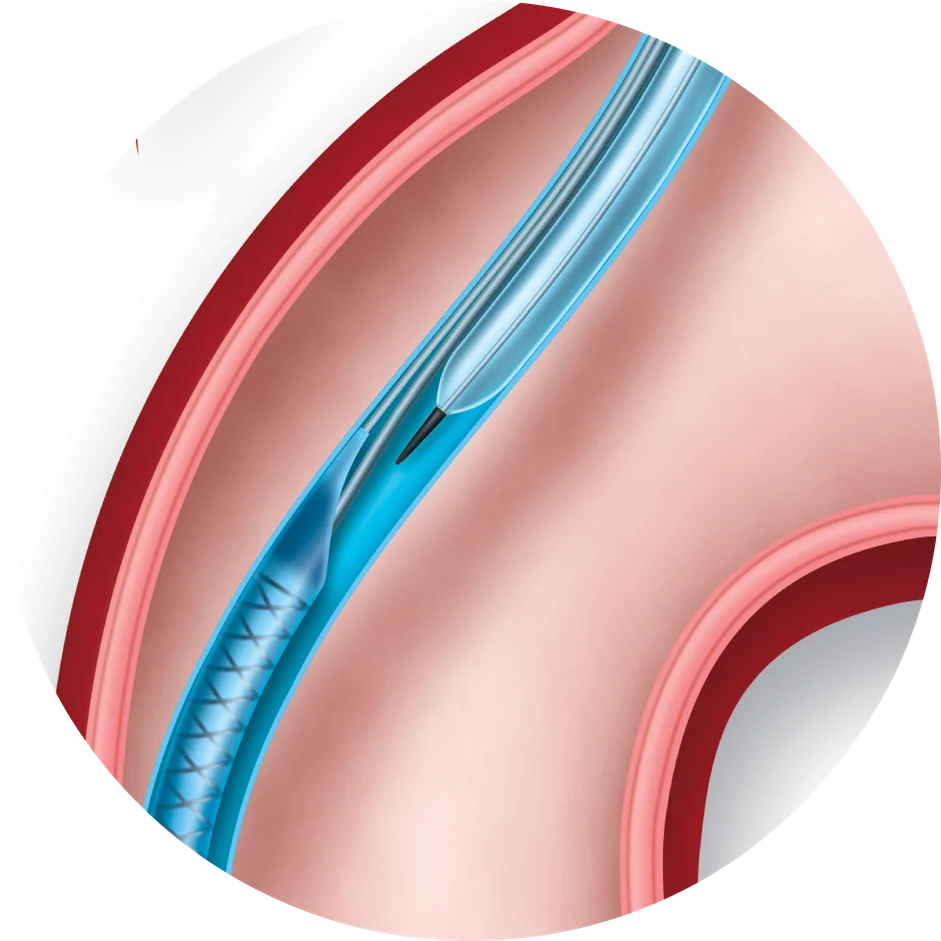

Designed for
Device Compatibility
Designed to seamlessly work with FlowGuide, NHanceIT, ReCross, and NHancer Rx, TrapIT enables true 6F OTW capability – supporting efficient, controlled microcatheter exchange while preserving wire position.
Product Specifications
mm balloon – sized for the guide, not the lesion
Shaft OD – the crossing-space advantage
Patented built-in stop – positions the balloon for you
Two lengths, matched to 90 and 100 cm guides
Depth marker for 90 cm guide catheters • True distal radiopaque tip • Non-hydrophilic balloon surface • Continuous stainless-steel core • See IFU for complete specifications
| Nominal Pressure | 8 ATM |
|---|---|
| Rated Burst Pressure (RBP) | 12 ATM |
| Shaft diameter | 2.0F |
| Balloon length | 15 mm |
| Balloon nominal diameter | 2.5 mm |
| Product | T-90 | T-100 |
|---|---|---|
| Model number | TRP9015 | TRP10015 |
| Guiding Catheter Compatibility | 6F, 7F, 8F | 6F, 7F, 8F |
| Guiding Catheter Length | 90 cm | 90 cm, 100 cm |
CE Registration under device name TrapIT Trapping Balloon Catheter. PFAS Free.
Downloads and Related Links
Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions. Caution: Federal Law (U.S.) restricts this device to sale by or on the order of a physician. TrapIT™ is a trademark of IMDS.
