Simplify Complex
Bifurcations
in 6F.
Engineered for
Predictable Side Branch Access
Remove stylet
enhances OTW pushability.
1. IMDS Data on File

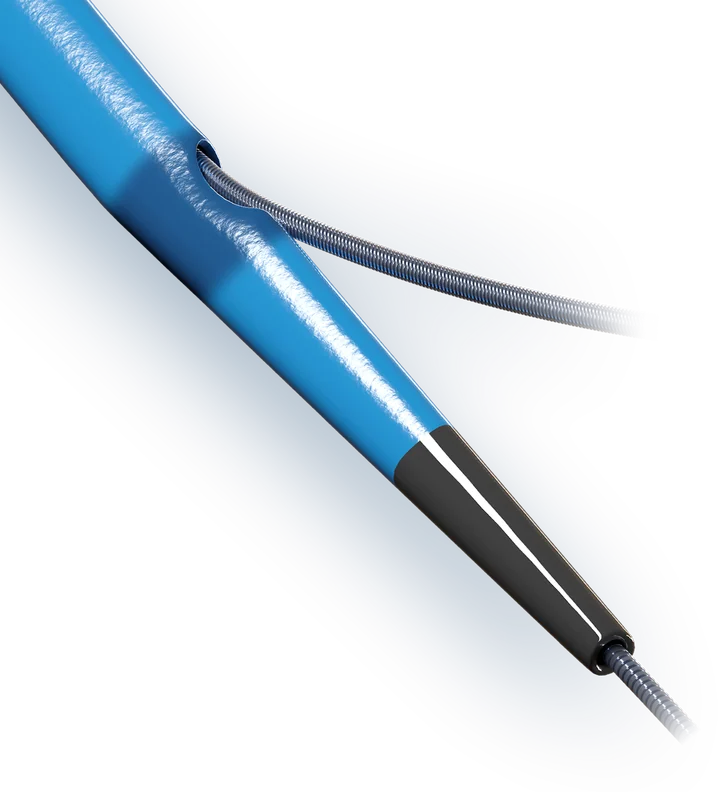

Angled side port directs the guidewire toward the side branch for easier, more controlled access.
Radiopaque tip and exit ports enable 180° visualization for precise side branch wiring.
Reliable Bifurcation
Access & Trapping in 6F
NHancer Rx’s low 2.3F crossing profile preserves critical guide space – enabling reliable trapping and consistent dual-wire performance in 6F workflows.
1. IMDS Data on File

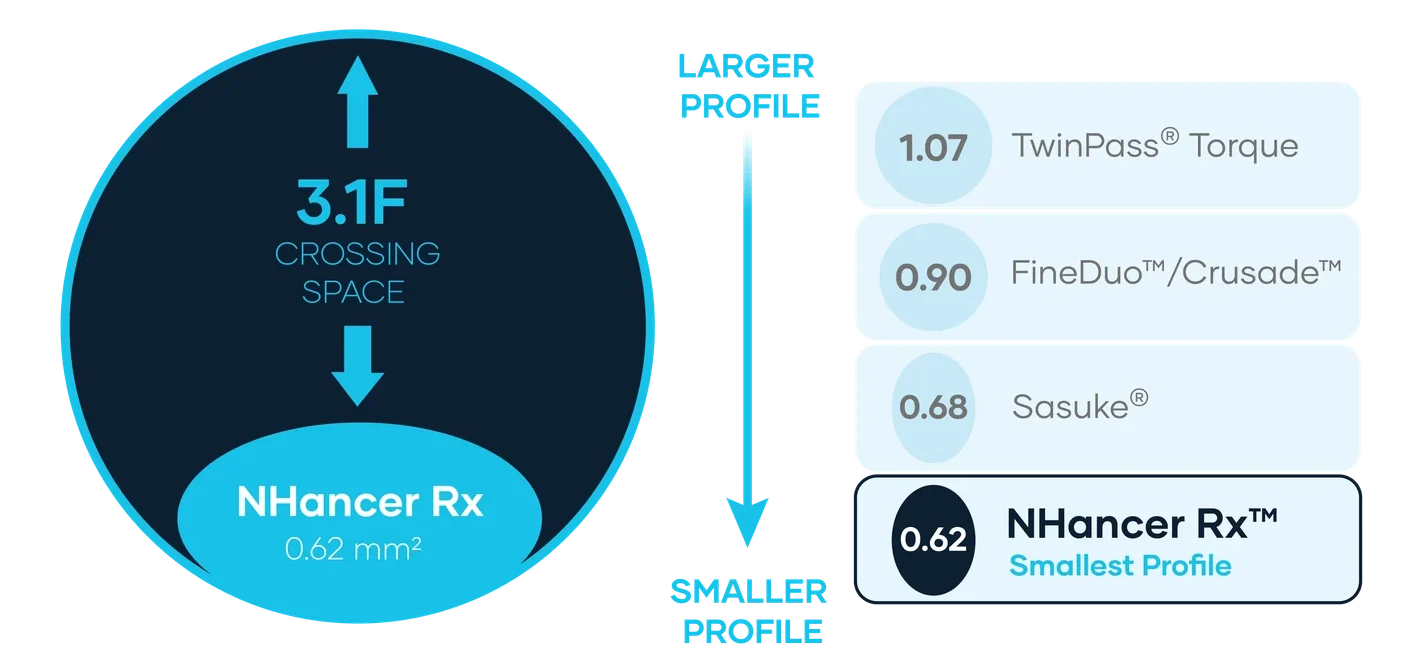

Smallest Crossing Profile1
Dual Lumen Microcatheters are Associated with
Higher Technical & Procedural Success1

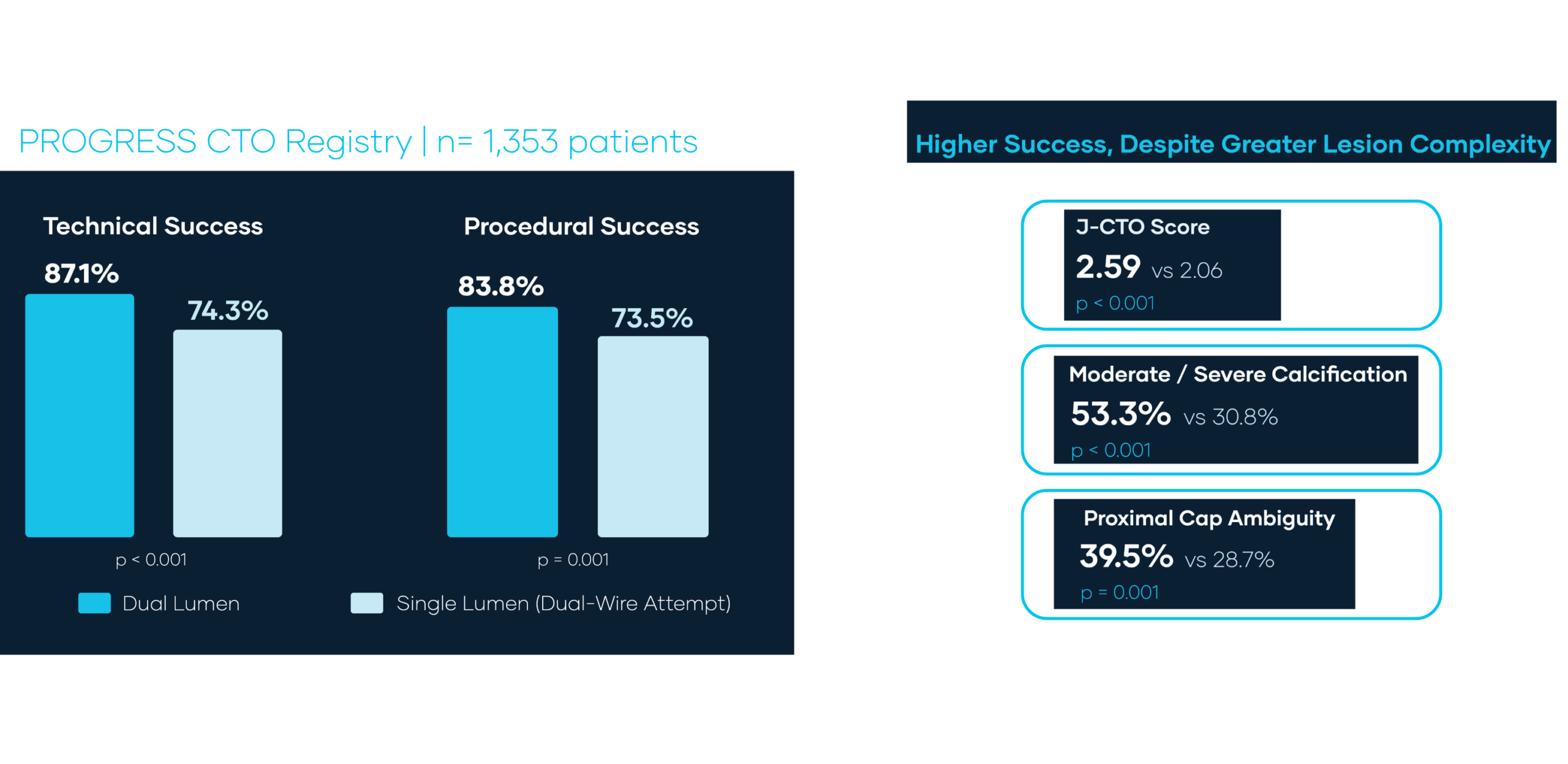

PROGRESS CTO Registry | n = 1,353 patients
Technical Success
Procedural Success
Higher Success, Despite Greater Lesion Complexity
J-CTO Score
2.59vs 2.06p < 0.001Moderate / Severe Calcification
53.3%vs 30.8%p < 0.001Proximal Cap Ambiguity
39.5%vs 28.7%p = 0.0011. PROGRESS-CTO Registry (Brilakis ES, et al. CCI, 2025). *Based on complex CTO cases after failed antegrade wiring attempts.
Engineered Together
for Complex CTO Scenarios

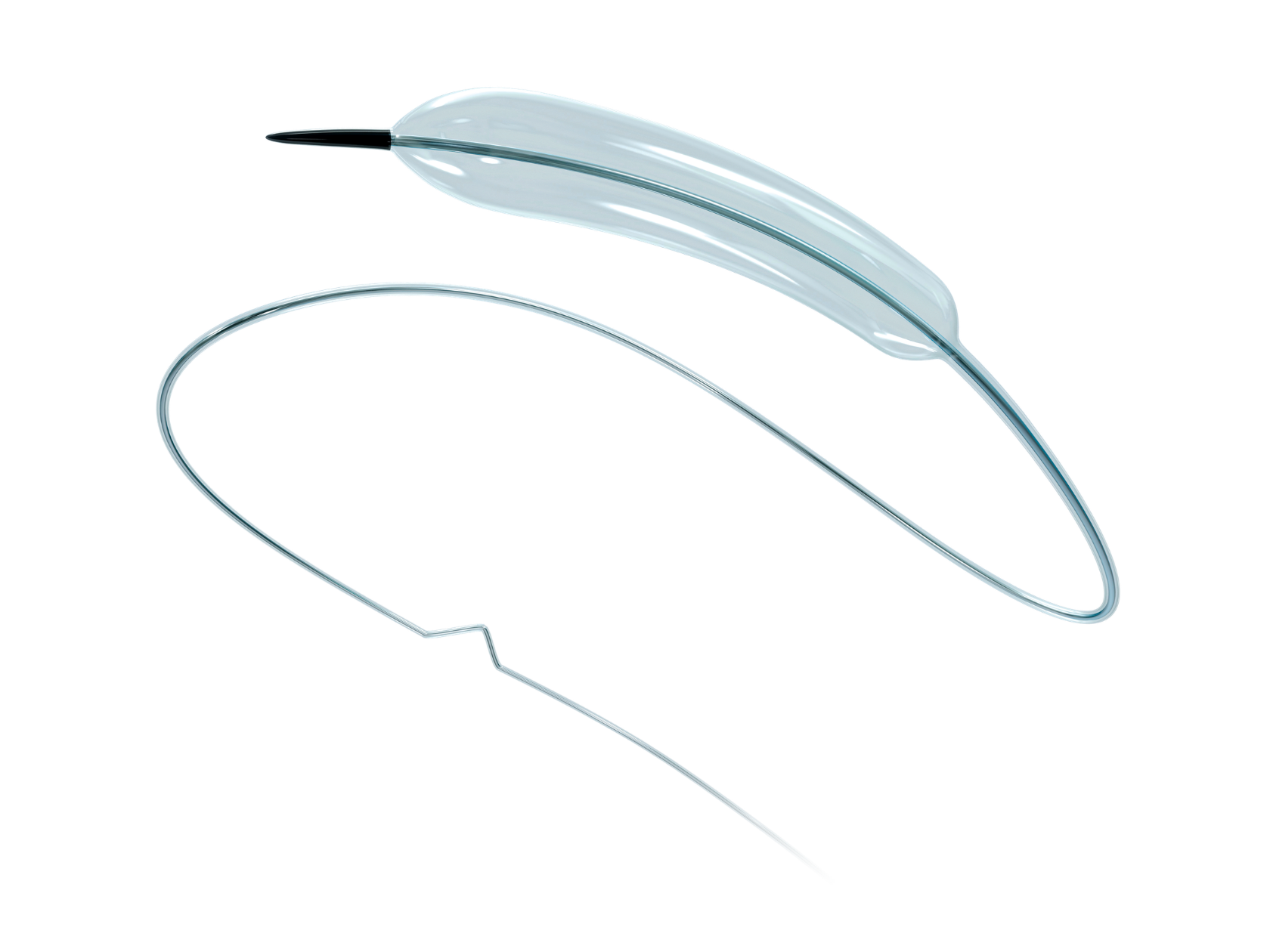

Designed to work seamlessly with NHancer Rx, TrapIT enables true 6F OTW capability – preserving dual-wire position for controlled, consistent bifurcation access.
Product Specifications
Oval distal shaft – smallest crossing profile in class
Usable length, exit markers at 95 and 105 cm
Guide wire compatibility OTW and Rx lumens
Removable, for adjustable push and trackability
Hydrophilic coated • Radiopaque atraumatic tip • Reinforced shaft • 0.48 mm shaft inner diameter • PFAS free • See IFU for complete specifications
| Proximal Profile | 2.6F (0.86 mm) |
|---|---|
| Distal Profile | Oval low profile design 2.3F x 3.3F |
| Lesion entry profile | 1.5F |
| Guide wire compatibility OTW Lumen | 0.014″ |
| Guide wire compatibility Rx Lumen | 0.014″ |
| Distal shaft coating | Hydrophilic >15 cm |
| Exit markers | 95 cm and 105 cm |
| Tip design | Soft tapered tip |
| Model number | NRX1413518 |
|---|---|
| Guide catheter compatibility | 5F |
| Usable length | 135 cm |
CE Registration under device name NHancer Rx Dual Lumen Rapid Exchange Catheter. PFAS Free.
Downloads and Related Links
Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions. Caution: Federal Law (U.S.) restricts this device to sale by or on the order of a physician. NHancer Rx™ is a trademark of IMDS.
